1) Find the relationship between the segments.

1) Analysis:

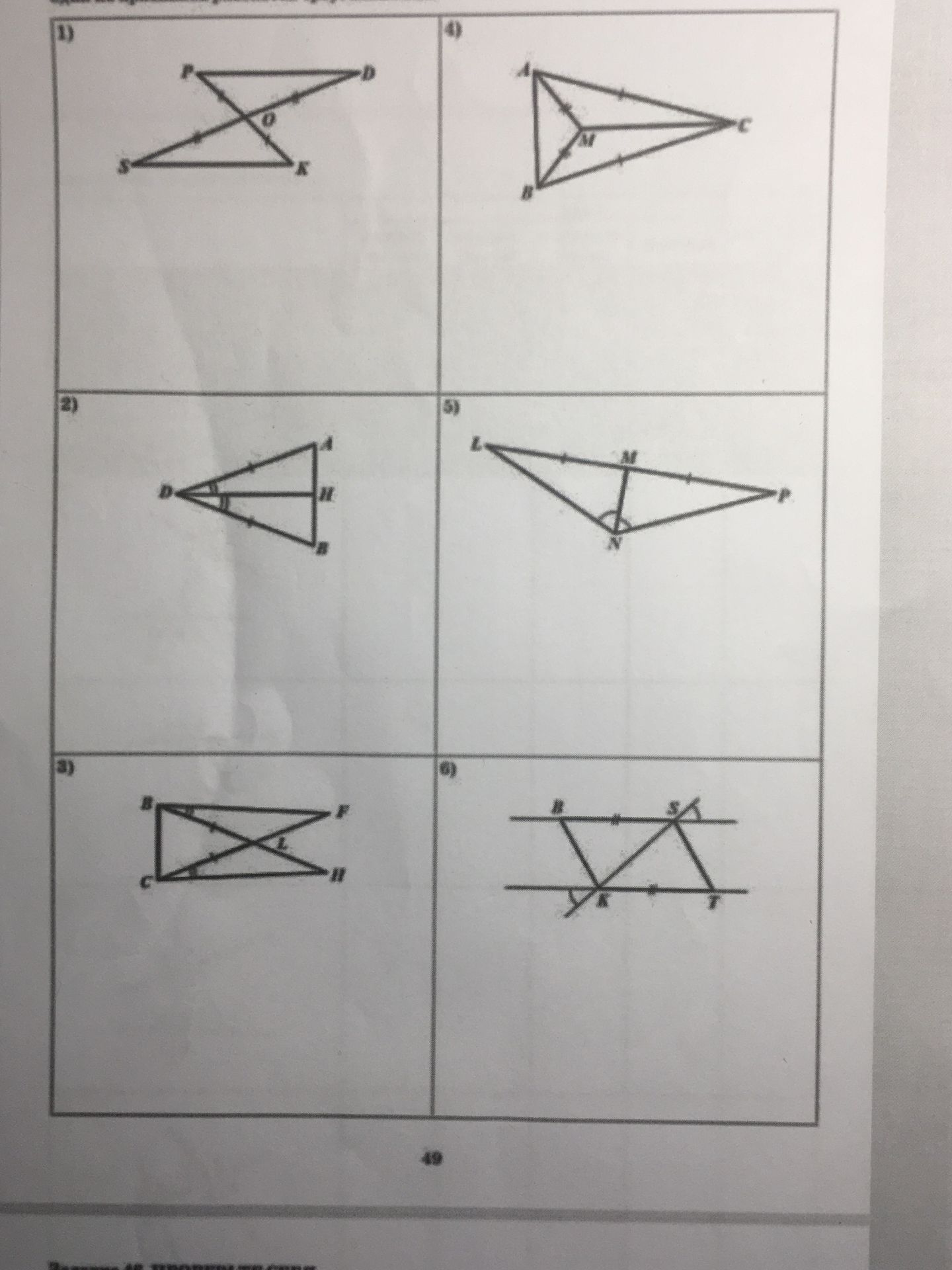

In the given figure, two triangles are formed by intersecting lines. We need to identify the relationship between the segments based on the markings.

The markings on the segments indicate equality:

• Segment PO is equal to segment OK (indicated by a single tick mark).
• Segment SO is equal to segment OD (indicated by a single tick mark).

When the diagonals of a quadrilateral bisect each other, the quadrilateral is a parallelogram. In this case, the diagonals are PK and SD, intersecting at point O. Since PO = OK and SO = OD, the quadrilateral formed by points P, S, K, D is a parallelogram.

Also, due to the vertical angles at O, we have triangle POS congruent to triangle KOD, and triangle POD congruent to triangle SOK (Side-Angle-Side congruence).

Relationship between segments:

• PO = OK
• SO = OD
• PS = KD (opposite sides of a parallelogram)
• PK = 2 * PO = 2 * OK
• SD = 2 * SO = 2 * OD

Conclusion: The diagonals of the quadrilateral bisect each other, indicating it is a parallelogram. Therefore, opposite sides are equal, and diagonals bisect each other.
